Description

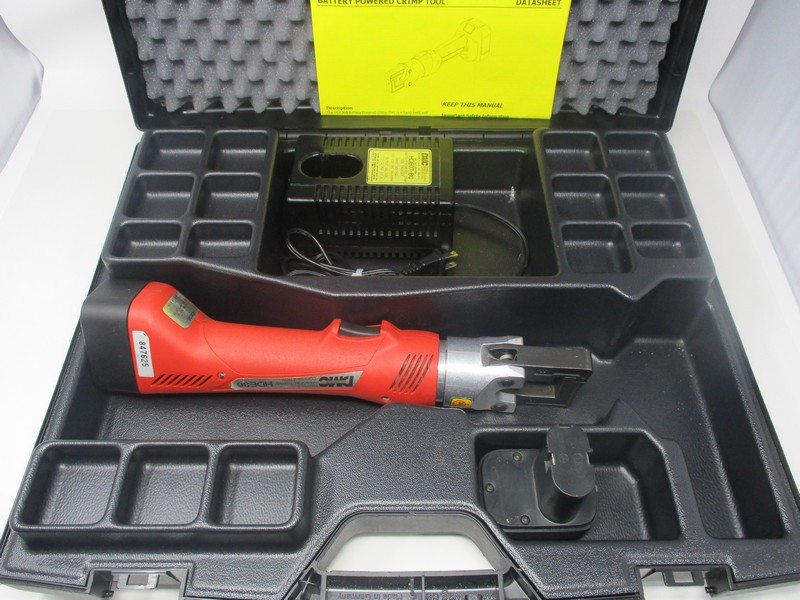

HDE36B Battery Powered Hydraulic Crimp Tool for HD36 DiesThe HDE36B Battery Powered Crimp Tool offers the portability of a hand tool with the stamina of a power tool! It is a hand-held, self-contained, 4-ton hydraulic crimp tool that is actuated with a single squeeze of the trigger. This tool is designed to accept the entire family of HD36 dies for crimping terminals, lugs, or any other special applications. WIRE RANGE: #8 to #0 AWG in many power applications, and .750 (19.05mm) in coaxial hexagonal crimping. |
CRIMP CAPACITIES
- Max. Crimp Force: 4 Tons (35.6 kN)
- Avg. Crimp Time: 3 seconds
- Avg. Crimps per Charge: 100
SPECIFICATIONS
- Length: 13.25″ (356 mm)
- Width: 2.87″ (72.9 mm)
- Depth: 4.5″ (114.3 mm)
- Weight (with battery): 2.8 lb (1.3 kg)
- Sound Level: 75 db(A) at 1 meter
- Vibration: <8.2 ft/s2 (2.5 m/s²)
Mfg: DMC Daniels
Condition: Used
